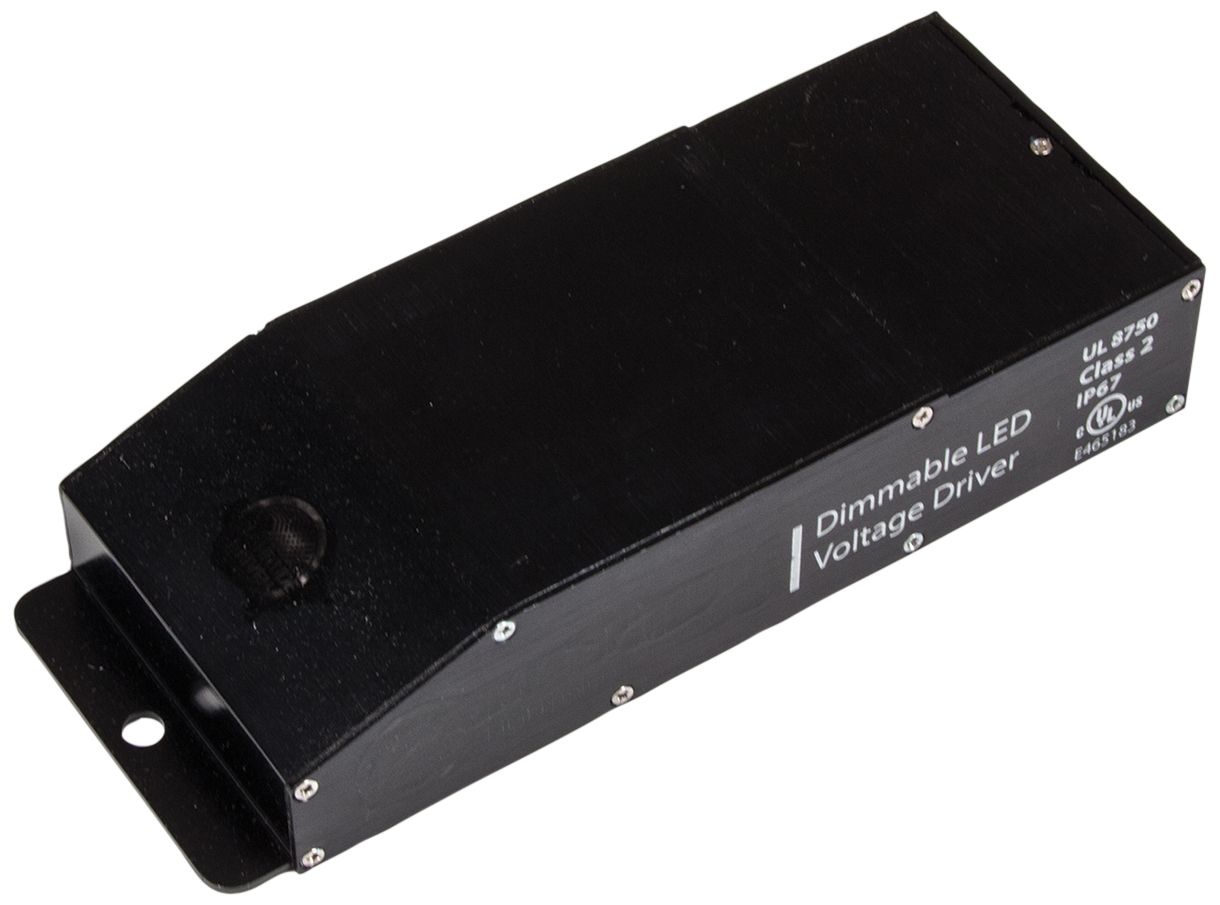

Roswell 2.67" Wide Black 12VDC 60W LED Dimmable Power Supply

Click for more product variations!

A hardwire design from SlimEdgeâ„¢, this energy-efficient LED electronic dimmable power supply features a maximum output of 60 watts. The power supply boasts a black finish and all-aluminum construction NEMA 3R enclosure with a removable cover secured with a screw. With output of 12 volts, the power supply works with low-voltage ELECTRONIC wall dimmers with on-off switches, but is not for use with GMR4, GMR6 or SDP pucks.

• 6.77" wide x 2.67" deep x 1.26" high.
• Class II hardwire 12VDC energy-efficient LED electronic dimmable power supply by SlimEdgeâ„¢.
• Black powder-coated.
• Transformer is encapsulated in all aluminum construction NEMA 3R enclosure. Enclosure temperature should not exceed 70-degree C (158-degree F) @ 40-degree C (104-degree F) ambient.
• Wiring compartment has two knockouts sized for 1/2" screw cable connectors.
• Removable cover for wiring compartment is secured in place by screw.
• Thermal class B-130C. Input leads are 14 AWG. Output leads are 18 AWG.
• Lead insulation rated to 105-degree C (221-degree F). Transformer utilizes a class B 130-degree C (266-degree F) insulation system.
• Max wattage is 60 watts. Output is 12V.
• No minimum load (can be fully loaded). Auto reset.
• Surface mount with front mounting tab.
• Works with low-voltage ELECTRONIC wall dimmer with on-off switch.
• Not for use with GMR4, GMR6 or SDP pucks.
• cULus, indoor use only.
